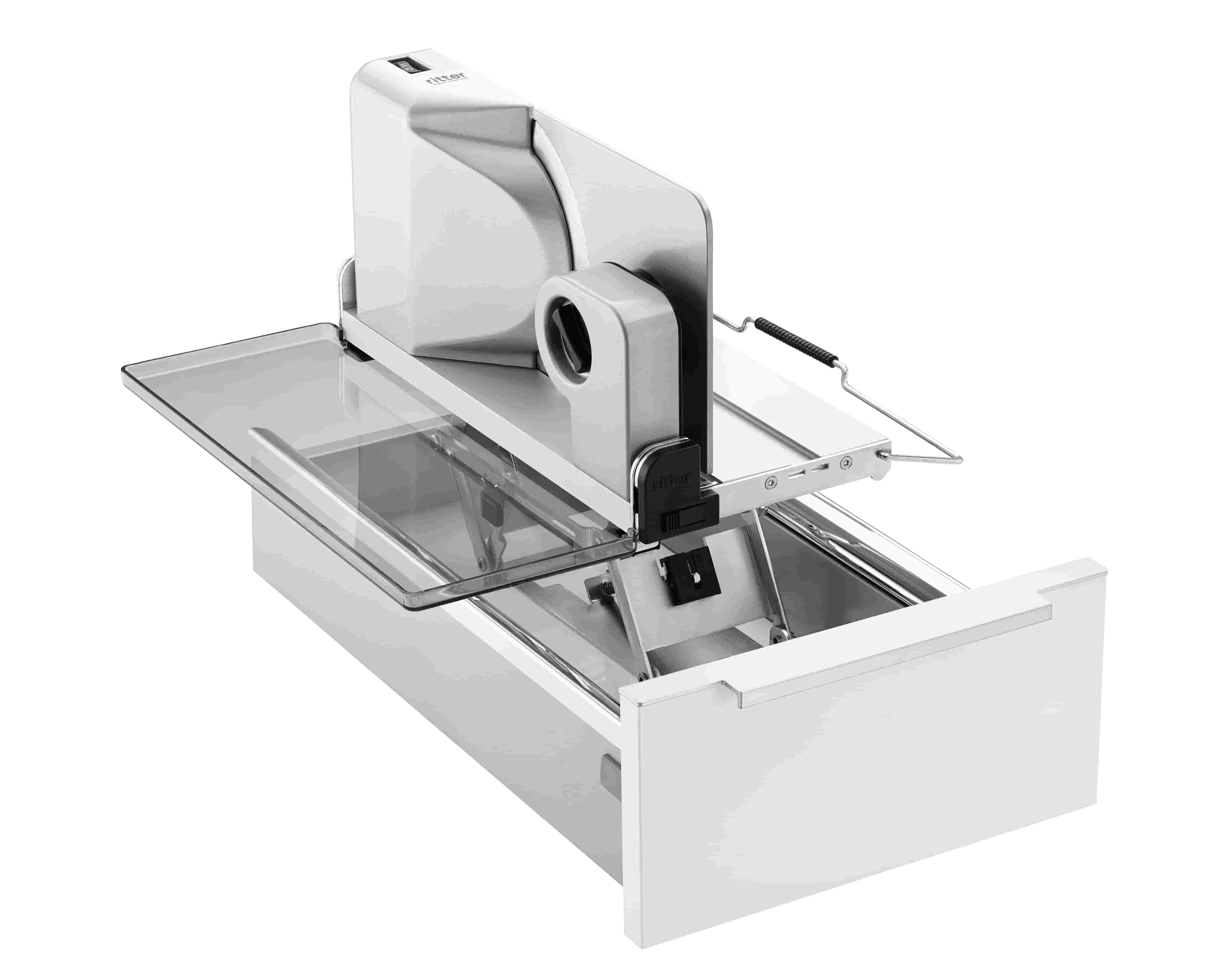

Built-in food slicer AES 52 S
The built-in food slicer AES 52 S folds up conveniently in one easy step.
The appliance takes up extremely little space and can be easily removed from the drawer for cleaning.
For the puchase of a built-in system such as this one, it is best to contect a specialist kitchen retailer in your area.
In case you're unsure which model is well suited for installation in your drawer, please refer to our installation notes.
Product information "Built-in food slicer AES 52 S"
Built-in slicer AES 52 S
For installation in drawers, cabinet width min. 30 cm.
Food sliced from right to left.
Solide foldaway mechanism without taking up much space at all!
The slicer AES 52 S requires a minimum of space and for easy cleaning, the slicer may be removed from the drawer without using any tools.
- food sliced from right to left
- metal construction
- serrated circular blade, 17 cm ø
- slice thickness adjustable up to approx. 14 mm
- safety switch for intermittent and continuous operation
- automatic folding lock when slice thickness is set

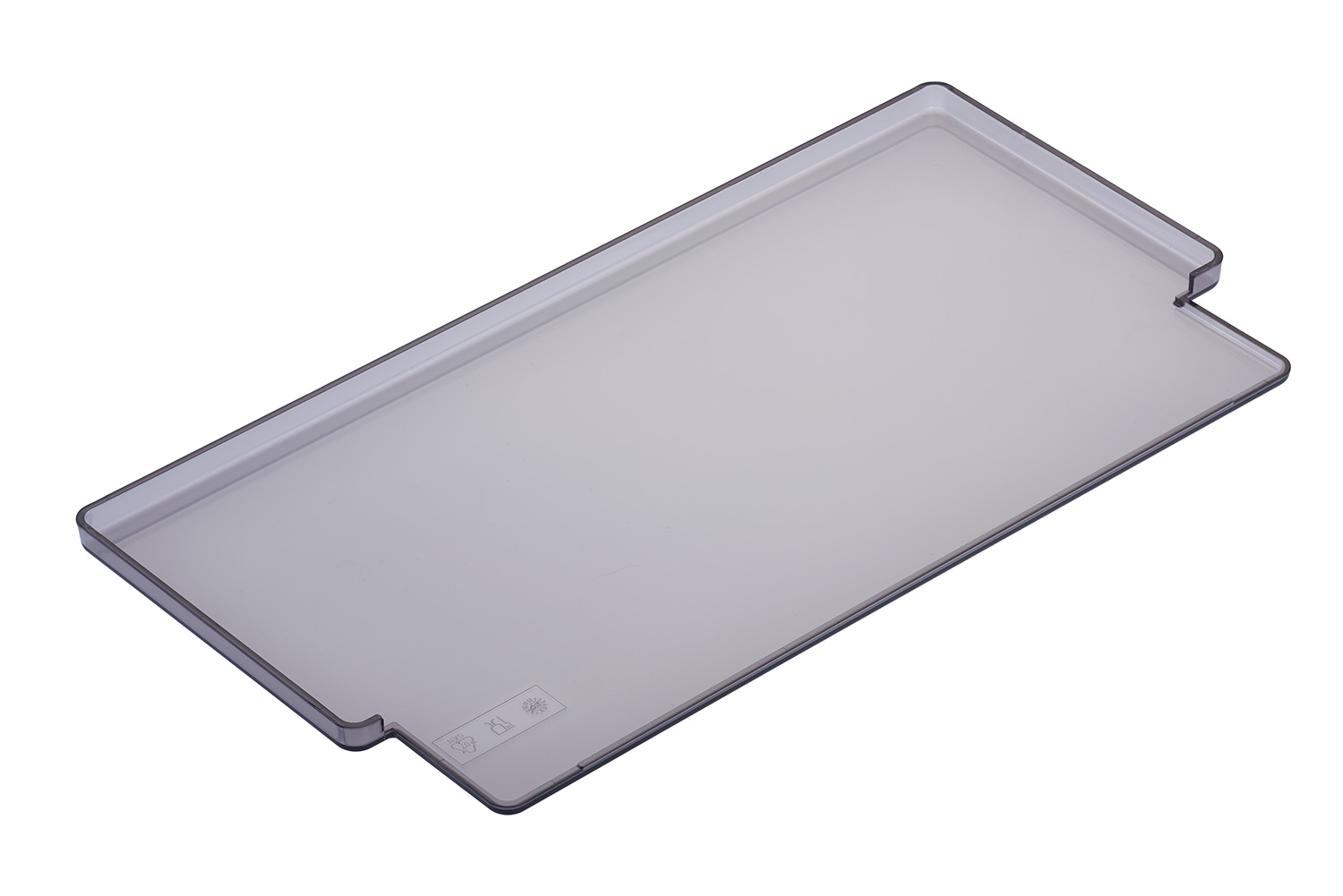

- food tray
- folding up fixture locks automatically
- VDE/GS, protection class 2, CE
- 230 Volt, 65 W, duty cycle 5 minutes
- dimensions: height 79 mm width 195 mm depth 385 mm (without food tray)
- weight: 4.3 kg
The built-in devices from ritterwerk are, even if they may not look like it, a more complex matter than just unpacking them, placing them in the counter and using them. There are many things to consider, such as the requirements for the installation, the dimensions and the correct mounting of the device. The sale/distribution of the built-in appliances is therefore exclusively carried out via the kitchen furniture industry or kitchen retailers. The installation of built-in appliances should be carried out by qualified personnel (kitchen manufacturers, carpenters, etc.).
We will show you exactly which built-in food slicer is best suited for the respective planning situation in our installation notes. There, you will also find further information on installation and assembly.
- The food slicer is to be used for domestic purposes only and must not be used commercially.
- Assembly (see page 11) must be performed by qualified personnel only. ritterwerk will not be held liable for the consequences of improper or incorrect assembly.
- Do not start using the appliance until it has been assembled by a professional.
- Fold the appliance away after each use and keep the drawer closed.
- Use the accessories included in the delivery specification only.
- The power cord must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped. The power cord must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.
- Do not bend the power cord. Never wrap the cable around the appliance.
- Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.
- Do not allow children to play with the appliance.
- Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.
- This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.
- Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.
- Never leave the appliance unattended while it is operating.
- Do not use it to cut frozen foods, hot foods, bones, food containing large stones, roast meats encased in netting or packaged foods!
- Never allow the appliance to run for more than 5 minutes at a time.
- Always remove the power plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable.
- Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture. If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water. Have the appliance inspected at an authorized service location before using it again.
- Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.
- Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.
- If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.
- This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.
- Before replacing accessories or add-on parts that move when operated, the appliance must be switched off and disconnected from the mains.
- The rotary blade is extremely sharp.
- Never touch the rotating blade when the appliance is operating!
- Switch the appliance off before cleaning it; pull the power plug out off the socket and turn the slice thickness adjustment knob to the „0“ position.
- The rotary blade will continue to run for a short time after being switched off.
Special features
Metal construction
A sturdy, well and longtime proven construction renders stability and strength to this metal food slicer. All parts that ensure stability are made of metal, making the device very sturdy and precise.
Compact food slicer
The AES 52 S slicer requires extremely little space. It fits into every standard drawer from 30 cm cabinet width and thus offers every kitchen the optimal use of space
Tool-free removal

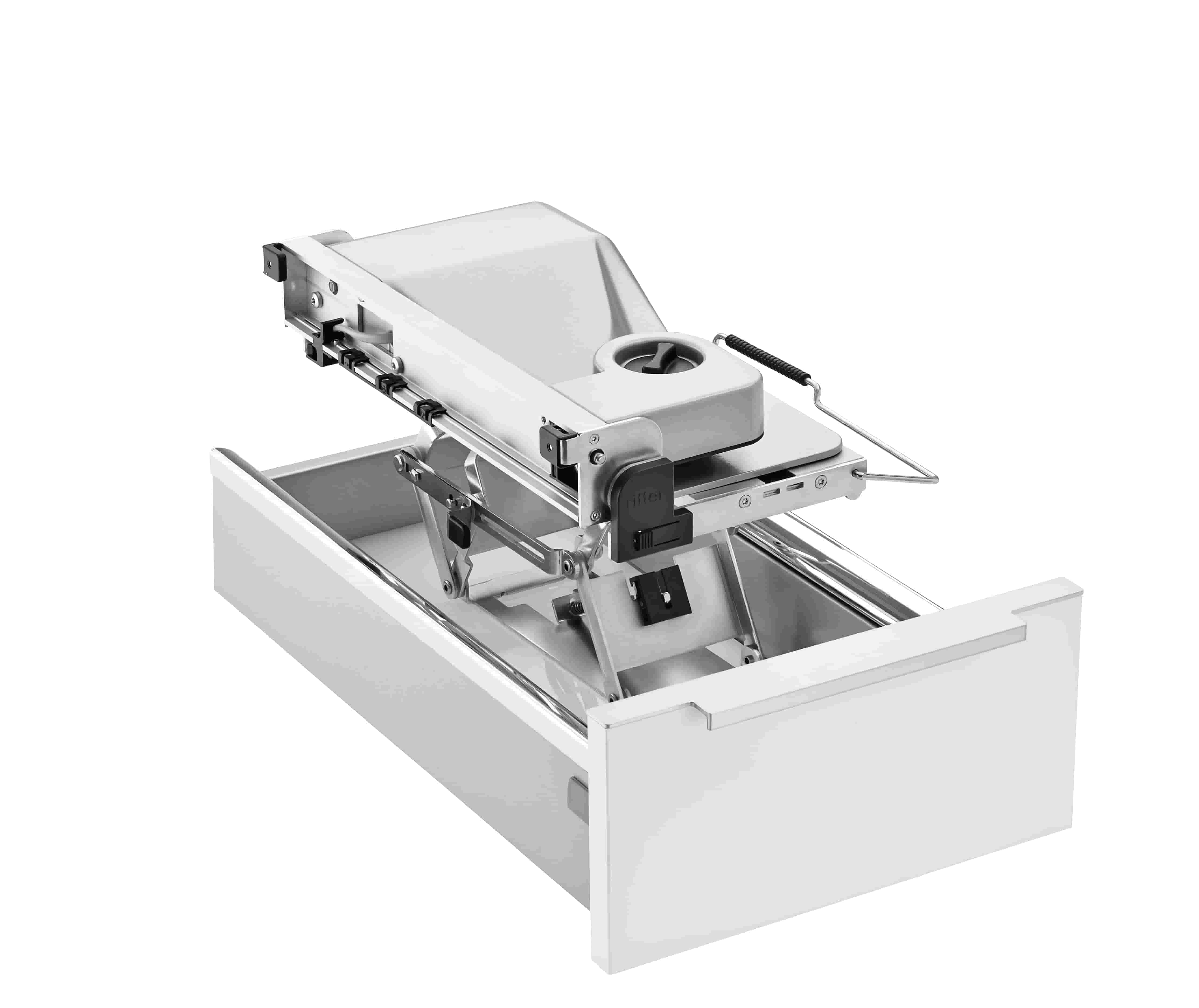

For the thorough cleaning of the drawer, the built-in food slicer can be removed quickly and easily without the use of tools in a few easy steps. All you need to do is to open the lock brackets.

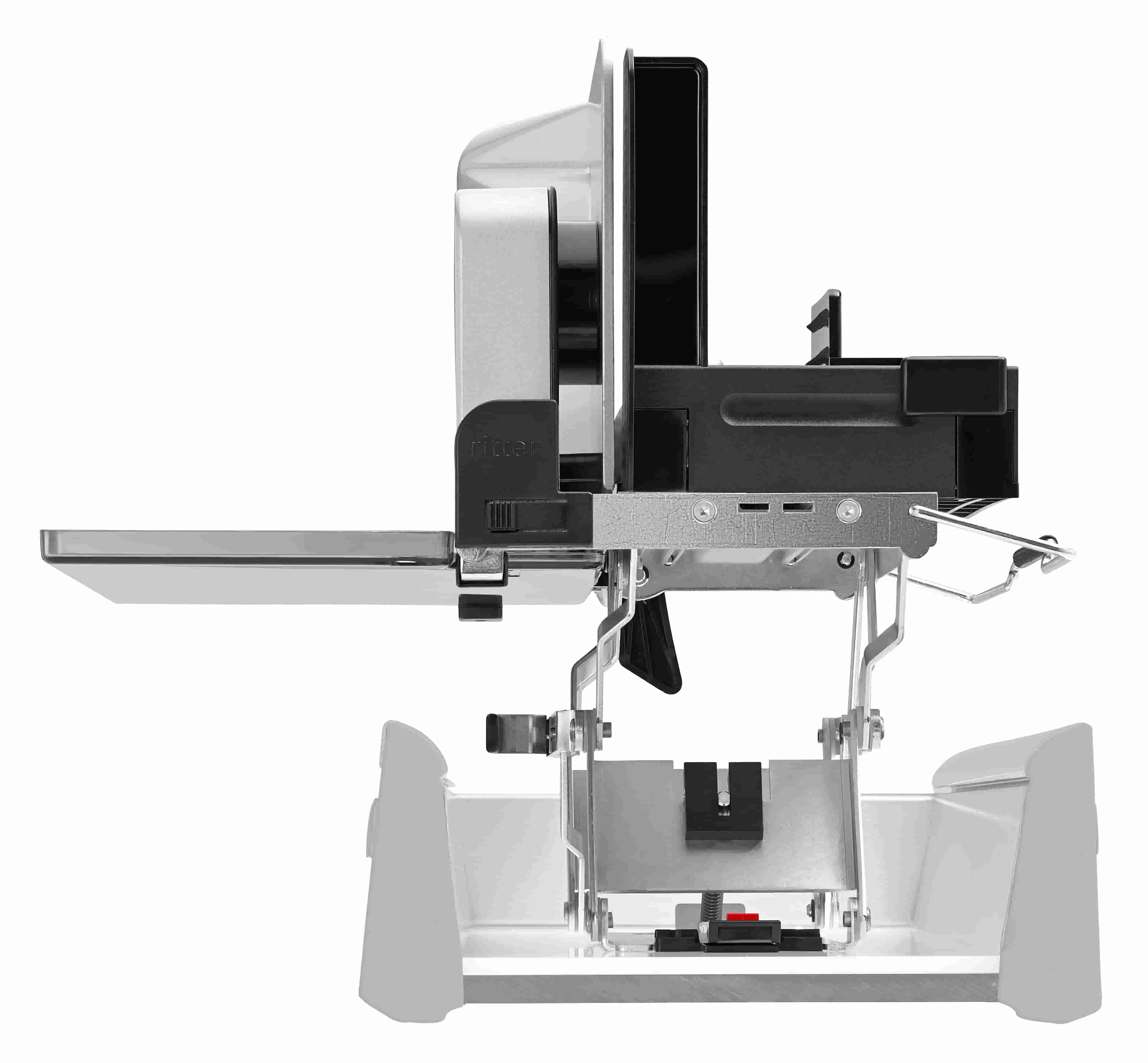

Quick collapsing

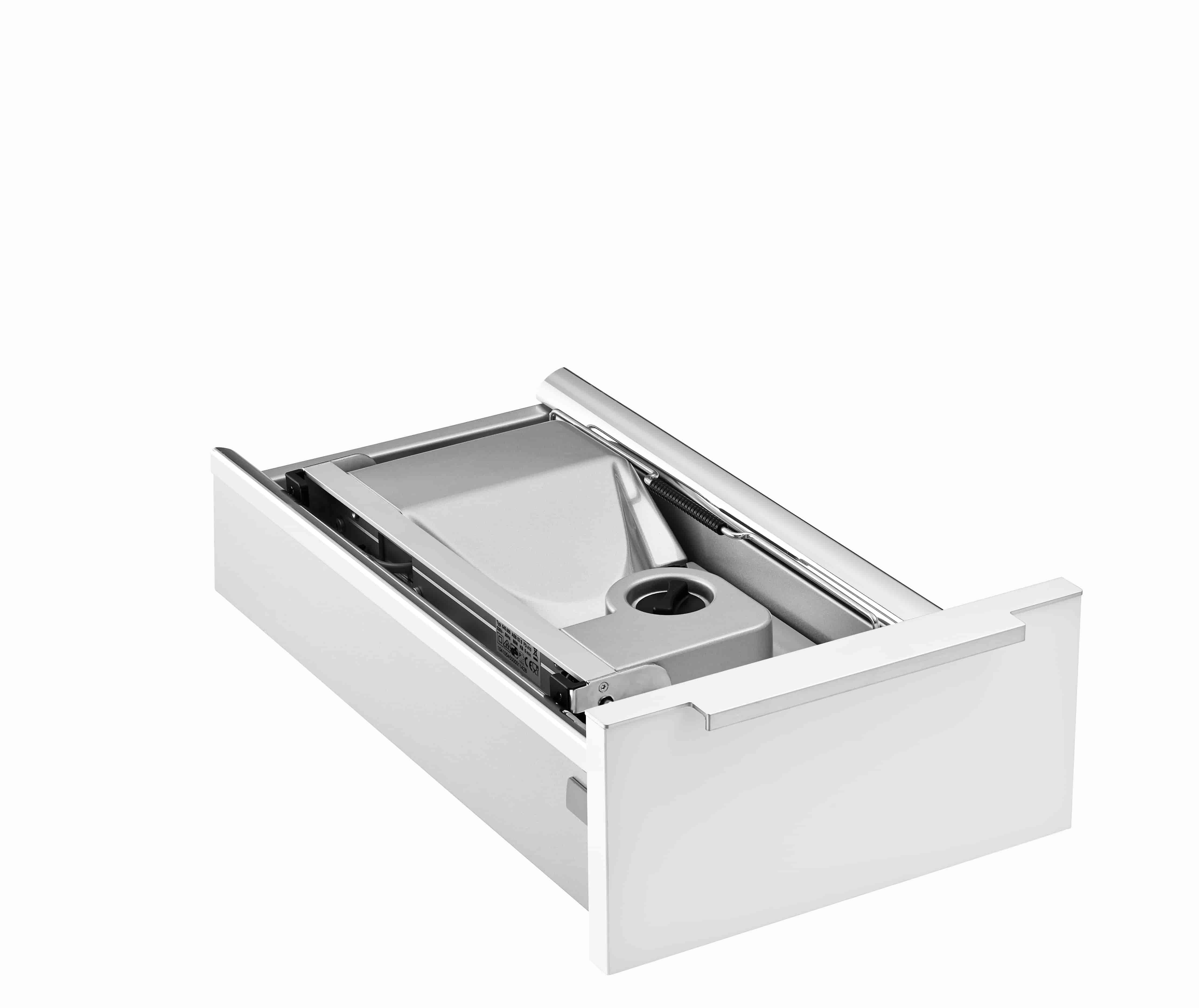

The AES 52 S built-in food slicer can be folded up in just two easy steps and stored safely in the drawer.
Folding lock
The built-in food slicer has a folding lock which prevents folding for safety reasons as long as the cutting thickness setting is not set to "0".
Safety switch for intermittent and continuous operation
Two operating modes are available. For short operation, the switch is pressed to position "II". The circular blade runs as long as the switch remains pressed in this position. For continuous operation, the switch is pressed to the "I" position. The circular blade runs in this operating mode without the switch being held down, until the switch is returned to the "0" position.
Slice thickness continuously adjustable
Whether waferthin or up to approx. 14 mm thick – everything is sliced evenly into appetizing slices – regardless of whether it's bread, sausage, cheese or even vegetables. The serrated circular blade, made from stainless steel, ensures the perfect "slice".
Powerful eco motor
The power is here! The built-in food slicer AES 52 S is driven by a 65 W eco motor which is 20 % more economical and just the same 50 % more powerful than the previous model. The use of this energy-saving motor makes a positive contribution to environmental protection.
You might also be interested in

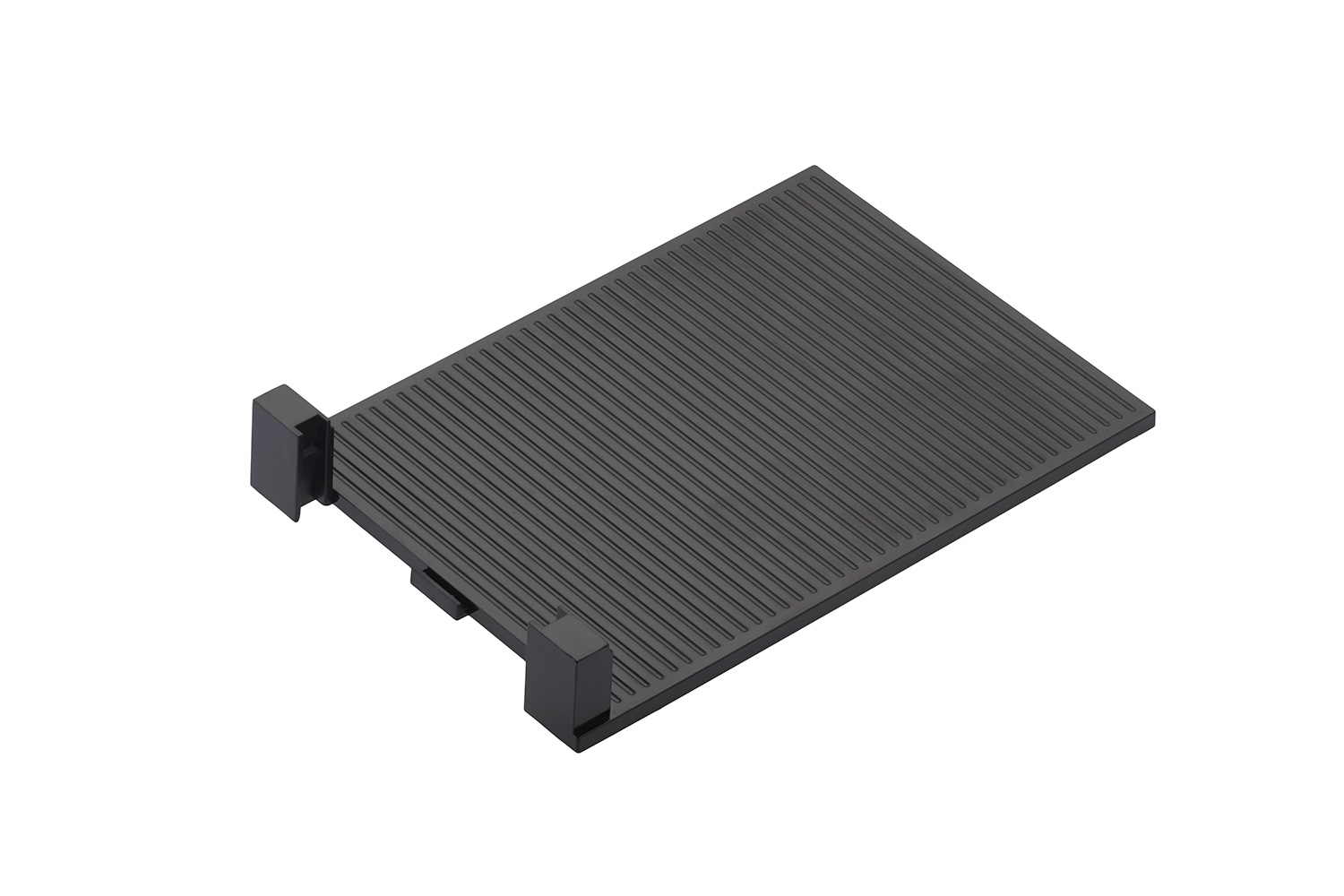

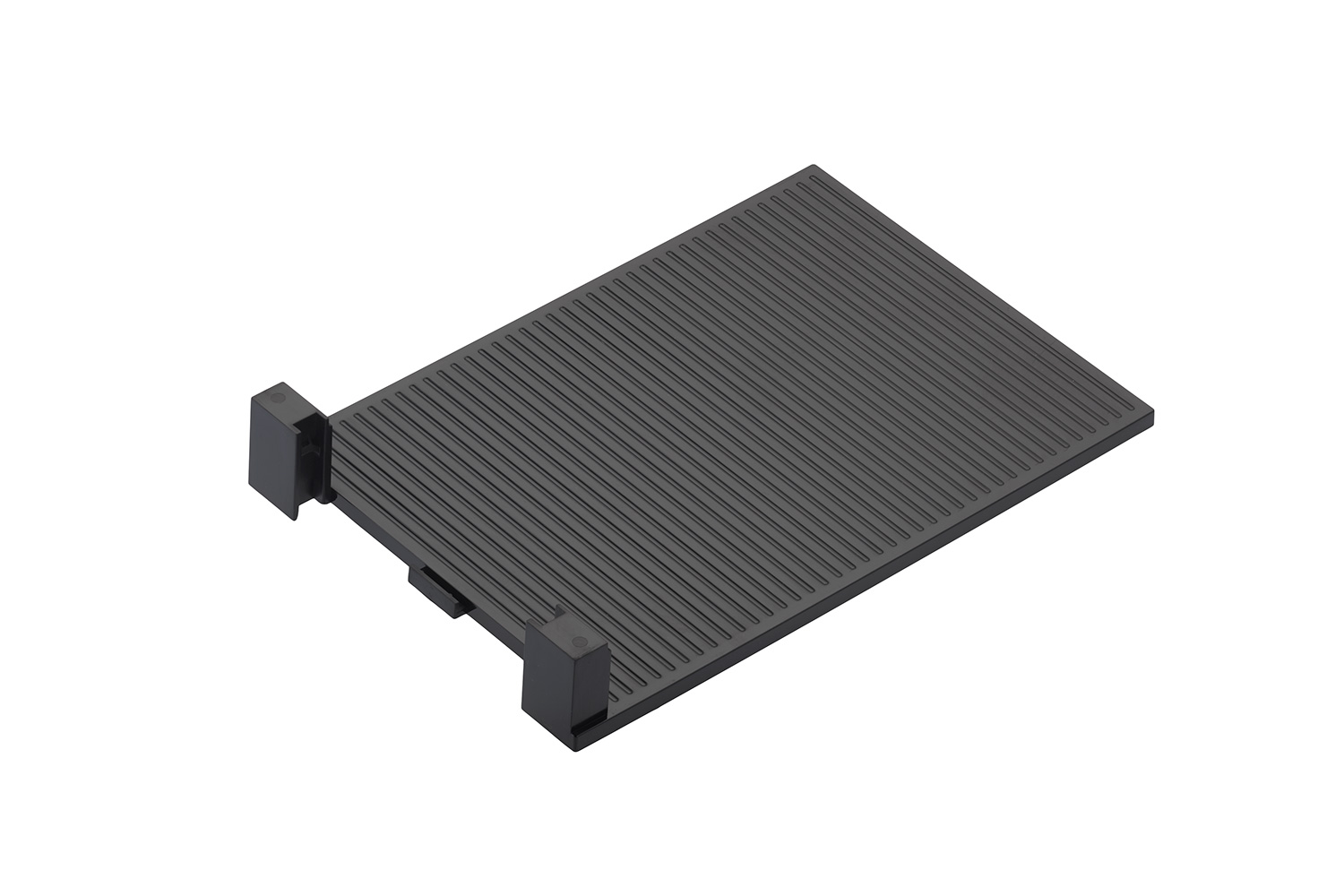

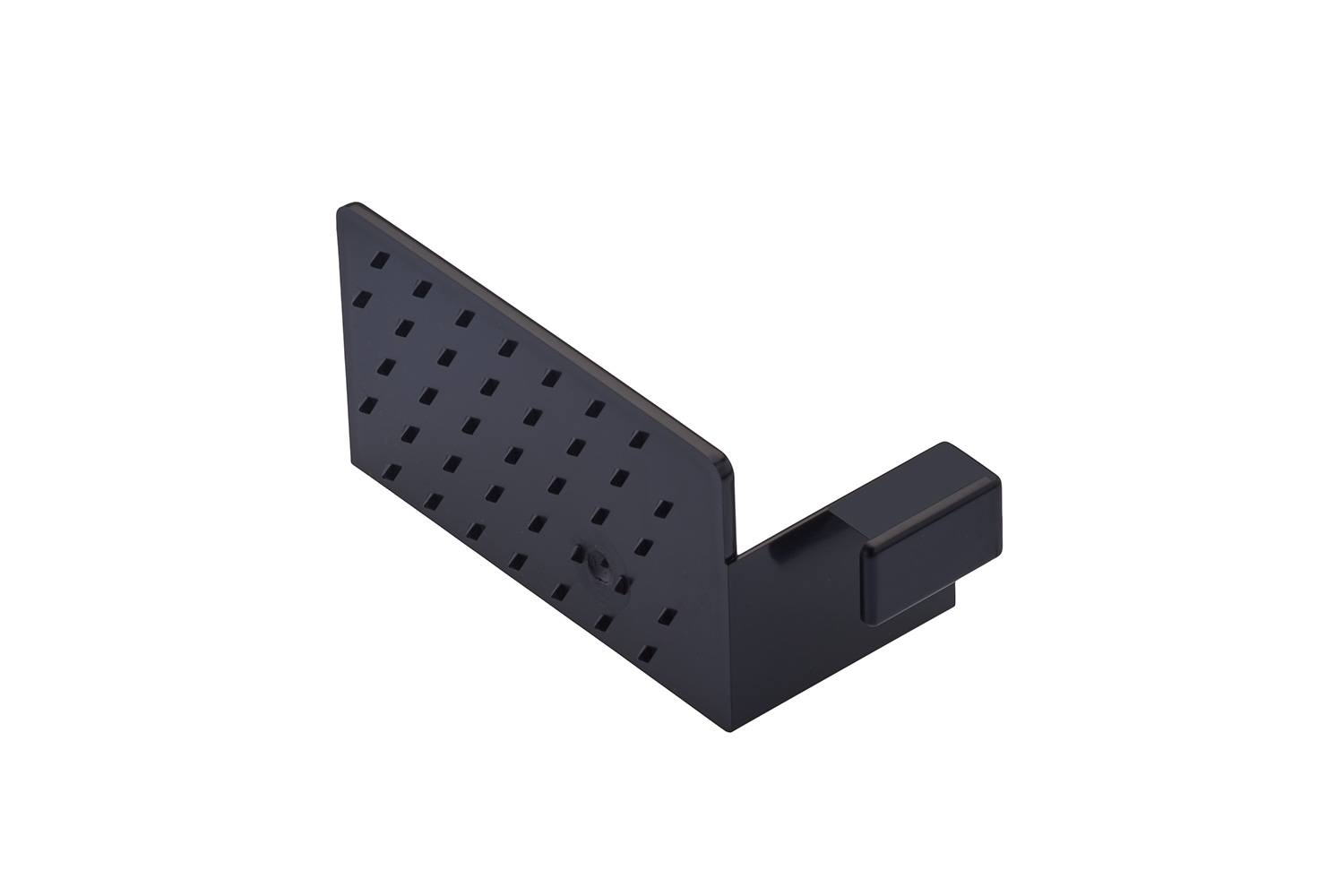

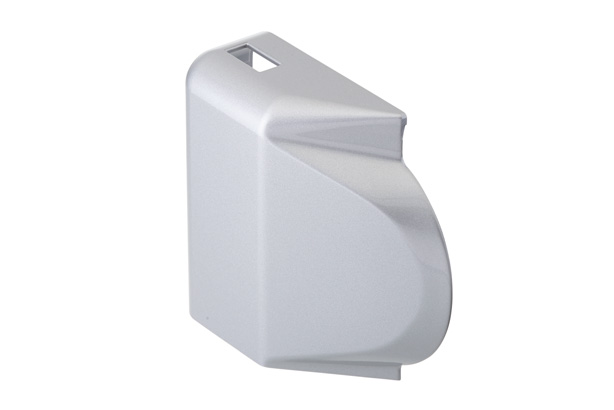

Available accessories/spare parts
