Built-in food slicer AES 62 SR

€0.00*

The built-in food slicer AES 62 SR is the optimal built-in solution that frees up countertop space.

This appliance is available for purchase for right-handed and a left-handed use.

For the purchase of a built-in system such as this one, it is best to contact a specialist kitchen retailer in your area.

In case you're unsure which model is well suited for installation in your drawer, please refer to our installation guide.

Product number: 542000

Product information "Built-in food slicer AES 62 SR"

Built-in slicer AES 62 SR

For installation in drawers, cabinet width min. 45 cm.

Right-hand operated.

Foldable yet still stable!

The most frequently installed slicing machine - the AES 62 - requires very little space and is unfolded in next to no time and ready for use in the drawer.

This model is also available to slice food on the the left (slicer AES 62 SL), as required.

In case you’re not sure which model is well suited for installation in your drawer, just refer to our installation notes.

food sliced form right to left
metal construction
serrated circular blade, 17 cm ø
slice thickness adjustable up to approx. 14 mm
safety switch for intermittent and continuous operation
automatic folding lock when slice thickness is set
food tray made of stainless steel
holding device / bracket for finger protection and left-over holder
folding up fixture locks automatically

VDE/GS, protection class 2, CE
230 V, 65 W, duty cycle 5 minutes
dimensions: height 75 mm width 342 mm depth 370 mm (folded)
weight: 4.3 kg

The built-in devices from ritterwerk are, even if they may not look like it, a more complex matter than just unpacking them, placing them in the counter and using them. There are many things to consider, such as the requirements for the installation, the dimensions and the correct mounting of the device. The sale/distribution of the built-in appliances is therefore exclusively carried out via the kitchen furniture industry or kitchen retailers. The installation of built-in appliances should be carried out by qualified personnel (kitchen manufacturers, carpenters, etc.).

We will show you exactly which built-in food slicer is best suited for the respective planning situation in our installation notes. There, you will also find further information on installation and assembly.

GENERAL SAFETY INSTRUCTIONS

To avoid personal injury or damage to the appliance, please observe the following safety instructions:

The food slicer is to be used for domestic purposes only and must not be used commercially.
Assembly (see page 11) must be performed by qualified personnel only. ritterwerk will not be held liable for the consequences of improper or incorrect assembly.
Do not start using the appliance until it has been assembled by a professional.
Fold the appliance away after each use and keep the drawer closed.
Use the accessories included in the delivery specification only.
The power cord must be positioned to ensure that the appliance can be fully folded down into the drawer without the cable becoming trapped. The power cord must be routed directly and without obstruction from the built-in system to the socket, which must be mounted in the floor unit.
Do not bend the power cord. Never wrap the cable around the appliance.
Persons with reduced physical, sensory or intellectual capabilities or lacking in relevant experience and/or knowledge may only use this appliance if they do so under supervision or have been instructed in the safe use of the appliance and understand the potential risks associated with its use.
Do not allow children to play with the appliance.
Always disconnect the appliance from the mains whenever it is to be left unsupervised, and also prior to assembly, dismantling and cleaning.
This appliance must not be used by children. Keep the appliance and its connection cable out of reach of children.
Only connect the appliance to a suitable AC power source that complies with the specifications on the type label.
Never leave the appliance unattended while it is operating.
Do not use it to cut frozen foods, hot foods, bones, food containing large stones, roast meats encased in netting or packaged foods!
Never allow the appliance to run for more than 5 minutes at a time.

Risk of electric shock

Always remove the power plug from the socket in the event of a malfunction, before cleaning and when the appliance is not in use. When doing so, pull on the plug and not on the cable.
Never immerse the appliance in water. Never expose the appliance to rain or any other form of moisture. If the appliance falls into water, unplug the cable from the mains socket before removing the appliance from the water. Have the appliance inspected at an authorized service location before using it again.
Always ensure that your hands are completely dry before using the appliance. Do not use the appliance if it is wet or damp or while you are standing on a damp surface. Do not use the appliance outdoors.
Stop using the appliance immediately if any parts are damaged and contact the ritter after-sales service.
If the power cord is damaged, it must be replaced by the manufacturer, the manufacturer's after-sales service or a similarly qualified person to eliminate risk of personal injury.

Risk of injury

This appliance must not be used without a slice carriage or a left-over holder, unless the size and shape of the food to be sliced means that these parts cannot be used.
Before replacing accessories or add-on parts that move when operated, the appliance must be switched off and disconnected from the mains.
The rotary blade is extremely sharp.
Never touch the rotating blade when the appliance is operating!
Switch the appliance off before cleaning it; pull the power plug out off the socket and turn the slice thickness adjustment knob to the „0“ position.
The rotary blade will continue to run for a short time after being switched off.

Operating instruction

Special features

Metal construction

A sturdy, well and longtime proven construction renders stability and strength to this metal food slicer. All parts that ensure stability are made of metal, making the device very sturdy and precise.

Optimal built-in solution

Food slicers built into kitchen drawers are space-saving and yet always within reach. The built-in solution also frees up space on the countertop.

High operating comfort

The AES 62 SR built-in food slicer is ready for use in the drawer with a simple flick of the wrist. And it can be stowed away in the drawer just as quickly.

Folding lock

The built-in food slicer AES 62 SR has a folding lock which prevents folding for safety reasons as long as the cutting thickness setting is not set to "0".

Safety switch for intermittent and continuous operation

Two operating modes are available. For short operation, the switch is pressed to position "II". The circular blade runs as long as the switch remains pressed in this position. For continuous operation, the switch is pressed to the "I" position. The circular blade runs in this operating mode without the switch being held down, until the switch is returned to the "0" position.

Food tray

The food tray to catch the sliced food is placed underneath the circular blade so that the slices can fall directly onto it. The sliced product can be conveniently and directly served using the practical food tray made of high-quality, easy-to-clean plastic.

Circular blade lock

The circular blade can be easily removed for cleaning by means of a coin-operated closure.

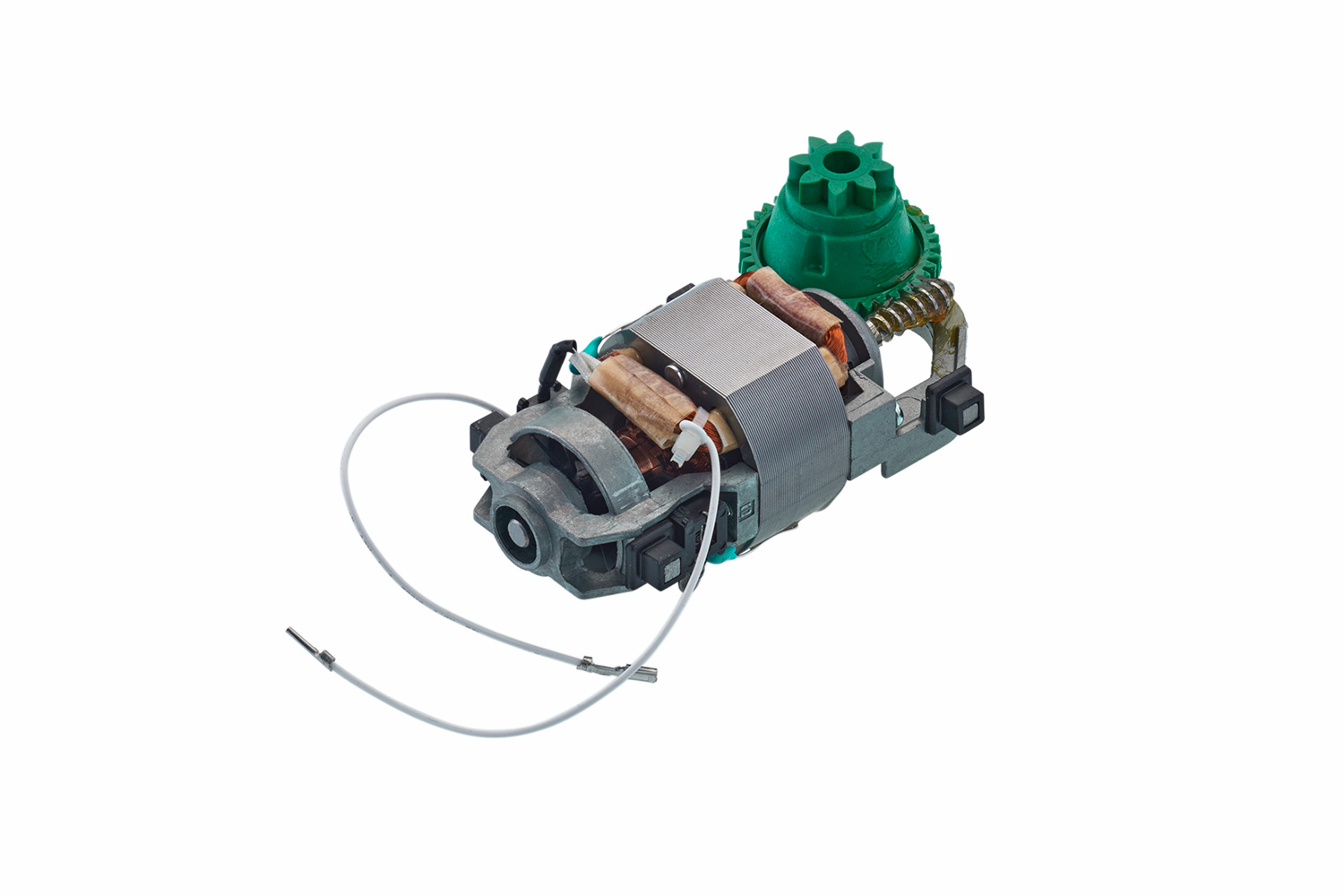

Powerful eco motor

The power is here! The built-in food slicer AES 62 SR is driven by a 65 W eco motor which is 20 % more economical and just the same 50 % more powerful than the previous model. The use of this energy-saving motor makes a positive contribution to environmental protection.
